Re: Bugatti Type 35 1/12

Postby ferrarissimus » Wed Mar 25, 2020 6:47 am

The cast all in one lubricant system is improved and mounted. I removed the cast tubes and replaced them by copper tubes. Was not easy to drill all the holes in the small parts.


Cast screws at the valve cover were also replaced.
You do not have the required permissions to view the files attached to this post.
User avatar
ferrarissimus
Midfield
Midfield

Posts: 419
Joined: Tue Aug 06, 2013 2:46 pm
Favorite F1 Team: Ferrari

Re: Bugatti Type 35 1/12

Postby ferrarissimus » Wed Mar 25, 2020 7:31 am

Three major issues in the kit are known and discussed in the forum: 1. the 'bulky' tires, 2. the shape of the tail and 3. the undersized drum brakes.
My solution of the first point:
I turned a tire holder for the lathe.




The width of the tires was sanded now for about 1,5 mm.


You do not have the required permissions to view the files attached to this post.
User avatar
ferrarissimus
Midfield
Midfield

Posts: 419
Joined: Tue Aug 06, 2013 2:46 pm
Favorite F1 Team: Ferrari

Re: Bugatti Type 35 1/12

Postby ferrarissimus » Wed Mar 25, 2020 7:36 am



You do not have the required permissions to view the files attached to this post.
User avatar
ferrarissimus
Midfield
Midfield

Posts: 419
Joined: Tue Aug 06, 2013 2:46 pm
Favorite F1 Team: Ferrari

Re: Bugatti Type 35 1/12

Postby pgarat » Wed Mar 25, 2020 1:45 pm

Hi,

A pleasure to follow!
I’m waiting for mine and it’s great to have information and a WIP to help.

I was reading the Type 35 Haynes Manual and think that some tires are pretty wide. Not that far from the MFH ones...

Can’t wait to see more.

Pascal
I'd rather be flying!

If only Closed Minds came with Closed Mouth

User avatar
pgarat
Minor Constructor
Minor Constructor

Posts: 911
Joined: Wed Apr 18, 2007 12:18 pm
Location: SW of France
Favorite F1 Team: beautiful F1!

Re: Bugatti Type 35 1/12

Postby ferrarissimus » Fri Mar 27, 2020 10:07 am

Completed wheels:


Issue 2: the tail.
I cut the resin cover along the lines by a rotating sew.





You do not have the required permissions to view the files attached to this post.
User avatar
ferrarissimus
Midfield
Midfield

Posts: 419
Joined: Tue Aug 06, 2013 2:46 pm
Favorite F1 Team: Ferrari

Re: Bugatti Type 35 1/12

Postby ferrarissimus » Fri Mar 27, 2020 10:09 am


Finally the tail was lowered by about 5mm and represents more the right shape.
You do not have the required permissions to view the files attached to this post.
User avatar
ferrarissimus
Midfield
Midfield

Posts: 419
Joined: Tue Aug 06, 2013 2:46 pm
Favorite F1 Team: Ferrari

Re: Bugatti Type 35 1/12

Postby Joaquin » Fri Mar 27, 2020 3:12 pm

Great job on the tail. We should send your pictures to Mr. Hiro to show him the meaning of a good job
User avatar
Joaquin
Backmarker
Backmarker

Posts: 338
Joined: Mon Jun 02, 2003 3:50 pm
Location: Madrid - Spain
Favorite F1 Team: Chapman's Lotus

Re: Bugatti Type 35 1/12

Postby jdroeven » Tue Mar 31, 2020 6:05 am

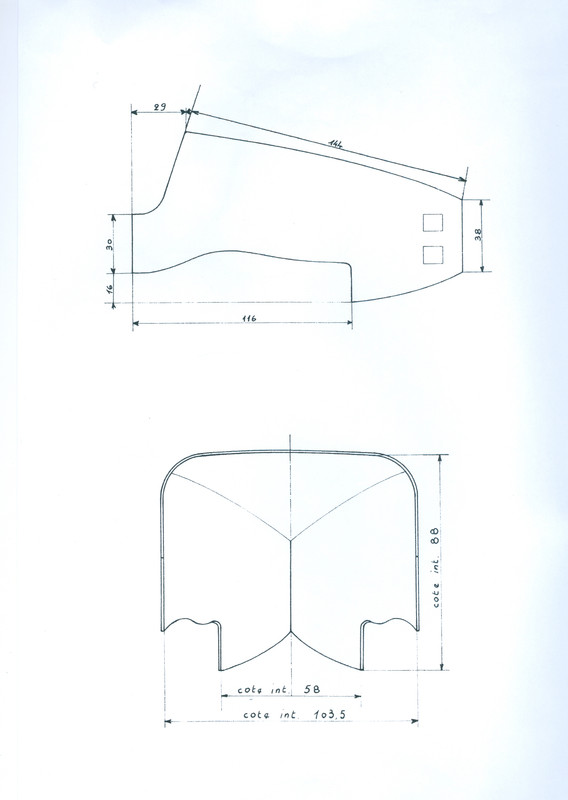

Maybe this could help: it is a drawing from Art Collection Auto (Fontenelle) Bugatti 35 kit
The scale is 1/8 and in mm
I'll post some pics of the Bugatti in Finished Models soon

jdroeven
F3
F3

Posts: 11
Joined: Tue Jan 17, 2017 11:26 am
Favorite F1 Team: Ferrari

Re: Bugatti Type 35 1/12

Postby jaydar » Tue Mar 31, 2020 8:59 am

skilled work. bravo

joe.
jaydar
Constructors Champion
Constructors Champion

Posts: 1248
Joined: Sun Sep 30, 2012 12:09 pm
Favorite F1 Team: McLaren

Re: Bugatti Type 35 1/12

Postby ferrarissimus » Wed Apr 01, 2020 4:38 pm

Some progress for the motor.
I think there are different opinions about the motor surface and so different solutions possible.
because most of the surviving machines are restored. May be, motors got different surface techniques .
Was it flat polished, metal scraped or machine turned in this specific car? I for myself used machine turning and I'm satisfied with the result now.






You do not have the required permissions to view the files attached to this post.
User avatar
ferrarissimus
Midfield
Midfield

Posts: 419
Joined: Tue Aug 06, 2013 2:46 pm
Favorite F1 Team: Ferrari
